HAProxy를 사용하여 고가용성(High Availability) 구성을 구현하는 방법

반응형

HAProxy (High Availability Proxy)를 사용하여 고가용성 (High Availability) 구성을 구현하는 방법

  • haproxy(로드밸런싱) : TCP/HTTP proxy and load balancer for high availability environments
  • keepalived(이중화) : Load balancer and high availability service

출처-https://access.redhat.com/documentation/en-us/red_hat_cloudforms/4.6/html/high_availability_guide/configuring_haproxy

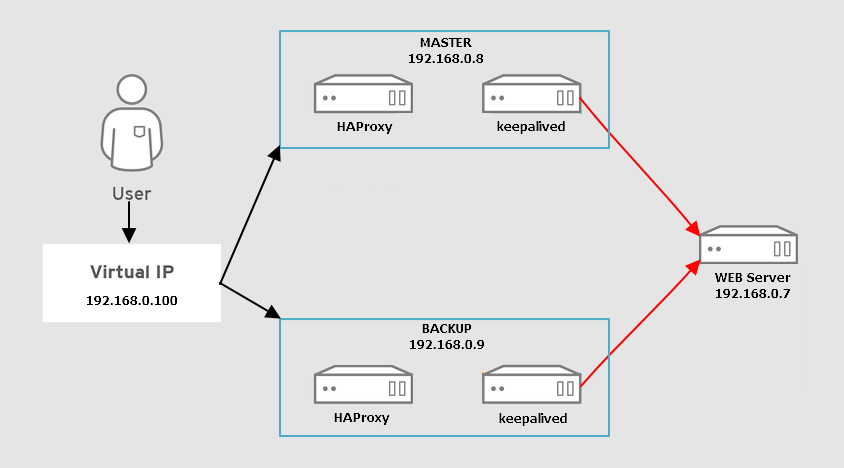

구성 환경

서버 운영체제 아이피 패키지 비고
VIP   192.168.0.100
master CentOS 7.9 192.168.0.8 haproxy, keepalived
backup CentOS 7.9 192.168.0.9 haproxy, keepalived
web CentOS 7.9 192.168.0.7 nginx - docker container

keepalived 설정

MASTER 설정 변경

  • keepalived.conf 편집
vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
   }
   router_id LVS_DEVEL
   vrrp_skip_check_adv_addr
   vrrp_garp_interval 0
   vrrp_gna_interval 0
}

vrrp_script chk_haproxy {
    script "killall -0 haproxy"
    interval 2
    weight 2
}

vrrp_instance VI_1 {
    state MASTER
    interface enp0s3
    virtual_router_id 51
    priority 200
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    unicast_src_ip 192.168.0.8
    unicast_peer {
        192.168.0.9
    }
    virtual_ipaddress {
        192.168.0.100/24
    }
    track_script {
        chk_haproxy
    }
}
  • IP 확인 결과
ip -brief address show
root@master:~$ ip -brief address show
lo               UNKNOWN        127.0.0.1/8 ::1/128
enp0s3           UP             192.168.0.8/24 192.168.0.100/24 fe80::c81c:fb28:a0f6:eecc/64
enp0s8           UP
enp0s9           UP
728x90

BACKUP 설정 변경

  • keepalived.conf 편집
vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
   }
   router_id LVS_DEVEL
   vrrp_skip_check_adv_addr
   vrrp_garp_interval 0
   vrrp_gna_interval 0
}

vrrp_script chk_haproxy {
    script "killall -0 haproxy"
    interval 2
    weight 2
}

vrrp_instance VI_1 {
    state BACKUP
    interface enp0s3
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    unicast_src_ip 192.168.0.9
    unicast_peer {
        192.168.0.8
    }
    virtual_ipaddress {
        192.168.0.100/24
    }
    track_script {
        chk_haproxy
    }
}

IP 확인 결과

ip -brief address show
root@backup:~$ ip -brief address show
lo               UNKNOWN        127.0.0.1/8 ::1/128
enp0s3           UP             192.168.0.9/24 fe80::3677:2cd:819d:bffc/64
enp0s8           UP
enp0s9           UP

haproxy 설정

  • MASTER/BACKUP haproxy.cfg 편집
vim /etc/haproxy/haproxy.cfg
global
    log         127.0.0.1 local2
    chroot      /var/lib/haproxy
    pidfile     /var/run/haproxy.pid
    maxconn     4000
    user        haproxy
    group       haproxy
    daemon

    # turn on stats unix socket
    stats socket /var/lib/haproxy/stats

#---------------------------------------------------------------------
# common defaults that all the 'listen' and 'backend' sections will
# use if not designated in their block
#---------------------------------------------------------------------
defaults
    mode http
    log global
    option httplog
    option dontlognull
    option http-server-close
    option forwardfor except 127.0.0.0/8
    option redispatch
    retries                 3
    timeout http-request    10s
    timeout queue           1m
    timeout connect         10s
    timeout client          1m
    timeout server          1m
    timeout http-keep-alive 10s
    timeout check           10s
    maxconn                 3000

#---------------------------------------------------------------------
# frontend which proxys to the backends
#---------------------------------------------------------------------
frontend FE-WEB-LB
        bind *:80
        mode http
        default_backend BE-WEB-LB

#---------------------------------------------------------------------
# round robin balancing between the various backends
#---------------------------------------------------------------------
backend BE-WEB-LB
        mode http
        option httpchk GET /
        http-check expect status 200
        #default-server inter 10s downinter 5s rise 2 fall 2 slowstart 60s maxconn 250 maxqueue 256 weight 100
        balance roundrobin
        server app1_80 192.168.0.7:80 check
        server app2_81 192.168.0.7:81 check
        server app3_82 192.168.0.7:82 check

#---------------------------------------------------------------------
# round robin balancing between the various backends
#---------------------------------------------------------------------
listen stats *:9000
    mode http
    stats enable
    stats hide-version
    stats refresh 30s
    stats show-node
    stats realm HAProxy Statistics
    stats uri /monitor
    stats auth admin:admin

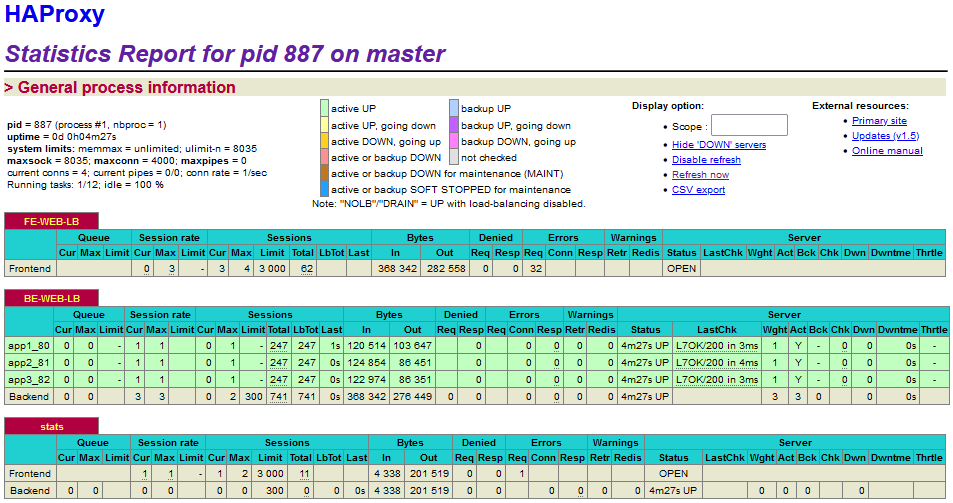

  • 통계보고서 페이지 확인
http://192.168.0.8:9000/monitor
