HashiCorp Vault SSH Client-Signer Secrets Engine을 통한 SSH 인증 구성 방법

반응형

HashiCorp Vault SSH Client-Signer Secrets Engine을 통한 SSH 인증 구성 방법

Vault 서버에서 SSH 인증을 위한 CA(Certificate Authority) 역할을 수행하게 하며 각 SSH 서버와 클라이언트는 Vault에서 생성된 CA를 신뢰하도록 설정됩니다.

테스트 환경

호스트 이름 아이피 역할 운영체제 비고
node1 192.168.10.111 vault server ubuntu 22.04
node2 192.168.10.112 ssh server ubuntu 22.04
node3 192.168.10.113 ssh client ubuntu 22.04

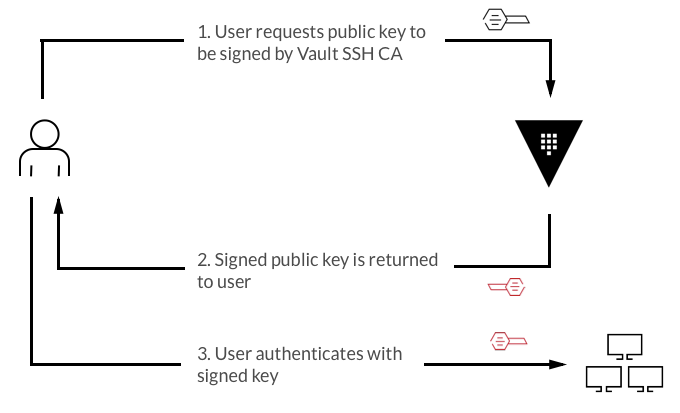

출처-https://www.pacewisdom.com/blog/wp-content/uploads/2020/12/VaultImage.png

1. Vault 데이터 디렉터리 초기화 및 서버 재시작

sudo systemctl stop vault
sudo rm -rf /opt/vault
sudo mkdir -pv /opt/vault/data
sudo chown -R vault:vault /opt/vault
sudo systemctl start vault
sudo systemctl status vault

2. Vault 설치

GPG 키와 저장소 추가

wget -O- https://apt.releases.hashicorp.com/gpg \
    | sudo gpg --dearmor --yes -o /usr/share/keyrings/hashicorp-archive-keyring.gpg
echo "deb [signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] https://apt.releases.hashicorp.com $(lsb_release -cs) main" \
    | sudo tee /etc/apt/sources.list.d/hashicorp.list

Vault 설치

sudo apt update
sudo apt install -y vault
vault version

Vault 설정 파일 구성

sudo tee /etc/vault.d/vault.hcl > /dev/null <<EOF
ui = true

storage "file" {
  path = "/opt/vault/data"
}

# HTTP listener
listener "tcp" {
  address = "0.0.0.0:8200"
  tls_disable = 1
}
EOF

Vault 서비스 시작 및 확인

sudo systemctl enable --now vault
sudo systemctl restart vault
sudo systemctl status vault

Vault 서비스 로그 확인

sudo journalctl -xeu vault
sudo journalctl -u vault -b

3. Vault 서버 환경 변수 설정

Vault 서버의 주소를 환경 변수로 설정하여 사용자가 Vault CLI를 통해 손쉽게 서버와 상호작용할 수 있도록 합니다.

echo "export VAULT_API_ADDR=http://127.0.0.1:8200" >> ~/.bashrc
echo "export VAULT_ADDR=http://127.0.0.1:8200" >> ~/.bashrc
source ~/.bashrc

4. Vault 초기화 및 언실

vault status
Key                Value
---                -----
Seal Type          shamir
Initialized        false
Sealed             true
Total Shares       0
Threshold          0
Unseal Progress    0/0
Unseal Nonce       n/a
Version            1.18.1
Build Date         2024-10-29T14:21:31Z
Storage Type       file
HA Enabled         false

Vault 초기화(Initialize Vault)

vault operator init -key-shares=1 -key-threshold=1 | tee vault-init-$(date +"%Y%m%d-%H%M%S").txt

Vault UI 접속

http://192.168.10.111:8200

unseal 및 로그인

vault operator unseal {Unseal Key}

vault operator unseal QttKV0C6S/xPLrPRqIAC5p+Dx10GhOX+MADzz4U0r7M=

vault login {Initial Root Token}

vault login hvs.fZozwuLaIBEsH7SNsmtsR9w1
Success! You are now authenticated. The token information displayed below
is already stored in the token helper. You do NOT need to run "vault login"
again. Future Vault requests will automatically use this token.

Key                  Value
---                  -----
token                hvs.fZozwuLaIBEsH7SNsmtsR9w1
token_accessor       TSXjJXZAJkgsVp24csou7JWH
token_duration       ∞
token_renewable      false
token_policies       ["root"]
identity_policies    []
policies             ["root"]

토큰(token)에 대한 정보 표시

vault token lookup
Key                 Value
---                 -----
accessor            TSXjJXZAJkgsVp24csou7JWH
creation_time       1731497524
creation_ttl        0s
display_name        root
entity_id           n/a
expire_time         <nil>
explicit_max_ttl    0s
id                  hvs.fZozwuLaIBEsH7SNsmtsR9w1
meta                <nil>
num_uses            0
orphan              true
path                auth/token/root
policies            [root]
ttl                 0s
type                service

seal 및 HA 상태 출력

vault status
Key             Value
---             -----
Seal Type       shamir
Initialized     true
Sealed          false
Total Shares    1
Threshold       1
Version         1.18.1
Build Date      2024-10-29T14:21:31Z
Storage Type    file
Cluster Name    vault-cluster-1adb0469
Cluster ID      588a0f37-9dba-8b31-8f9a-51826d788a25
HA Enabled      false

5. Syslog를 통한 Vault Audit 로깅 활성화

vault audit enable syslog
Success! Enabled the syslog audit device at: syslog/

6. SSH Client-Signer Secrets Engine 활성화 및 CA 키 생성

SSH Client-Signer Secrets Engine을 활성화하여 Vault가 SSH 키 서명 기능을 수행할 수 있도록 합니다.

vault secrets enable -path=ssh-client-signer ssh
Success! Enabled the ssh secrets engine at: ssh-client-signer/

클라이언트 CA(인증 기관) 인증서 생성

vault write ssh-client-signer/config/ca generate_signing_key=true
Key           Value
---           -----
public_key    ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQDXqZnO1TlCMKo8STV9yFi4PLMAed96vvL49/5UP26xcGE38/v9k5MAgE+bkszLdOIWL5vShOdiARpi+oOoI1zSXy/p2nBtlfU58RnSADWf44YNYlgfyjKWmO9HtT7p4sFRneCCHX/i74En/leniH40XifEpqzNWUaFD8MyWGFLVqeHtgnVFIsLGTS4iazfISLcSP/9jtCWTrpqFIaIrYXRUgLDrUg4X/JuMFGOyDxTed+MEbN13TidID5Pys79L6FnjiyS8rwUHLpAFQbmc0SX3SxjRuFUPp2+AfybnfSzAIy1OXbclU/Estp2m7v+nhf71gY2Rx49PgYK1eKYFfNxj7faeY9aSSf/Hm++xo4YTyGLa6YrezY7SXn50EmBfbORxMZD/RSznRPyw0gvIx3R6sRyWInAwUEAmrx/ZEV/H0aweeLwSt8QfS7WjM/G03QPZ11EqygyzHLgFpCgqnvoAMq9jR7rXhiPl/FrZRTHqlKgnZ8dnwbiyPhKI/Xz5ZyU7bJFvk3Za7Us+xm38WKi2E5Q52hCDgOcK37OX18IEH5mkbEvlFLCpLcw7P4HdD9KvjOBDSMCi0rgwuULyRsb4tJWhpgvLozO8J5xAGuT5Jzs1P4R/SRgnwZOX2PDrgXrfByo3ZYAm5+GlR9mXMbhpo0D1TyfO2EB+ZXWEoEKqw==

CA 공개 키 출력

vault read -field=public_key ssh-client-signer/config/ca > /etc/ssh/trusted-user-ca-keys.pem
$ cat /etc/ssh/trusted-user-ca-keys.pem
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQDXqZnO1TlCMKo8STV9yFi4PLMAed96vvL49/5UP26xcGE38/v9k5MAgE+bkszLdOIWL5vShOdiARpi+oOoI1zSXy/p2nBtlfU58RnSADWf44YNYlgfyjKWmO9HtT7p4sFRneCCHX/i74En/leniH40XifEpqzNWUaFD8MyWGFLVqeHtgnVFIsLGTS4iazfISLcSP/9jtCWTrpqFIaIrYXRUgLDrUg4X/JuMFGOyDxTed+MEbN13TidID5Pys79L6FnjiyS8rwUHLpAFQbmc0SX3SxjRuFUPp2+AfybnfSzAIy1OXbclU/Estp2m7v+nhf71gY2Rx49PgYK1eKYFfNxj7faeY9aSSf/Hm++xo4YTyGLa6YrezY7SXn50EmBfbORxMZD/RSznRPyw0gvIx3R6sRyWInAwUEAmrx/ZEV/H0aweeLwSt8QfS7WjM/G03QPZ11EqygyzHLgFpCgqnvoAMq9jR7rXhiPl/FrZRTHqlKgnZ8dnwbiyPhKI/Xz5ZyU7bJFvk3Za7Us+xm38WKi2E5Q52hCDgOcK37OX18IEH5mkbEvlFLCpLcw7P4HdD9KvjOBDSMCi0rgwuULyRsb4tJWhpgvLozO8J5xAGuT5Jzs1P4R/SRgnwZOX2PDrgXrfByo3ZYAm5+GlR9mXMbhpo0D1TyfO2EB+ZXWEoEKqw==

7. SSH 인증 역할 설정

서명된 인증서를 통해 인증 가능한 사용자를 제한하고 기본 사용자 및 인증서 TTL(Time To Live)을 설정합니다.

vault write ssh-client-signer/roles/my-role -<<"EOH"
{
  "allow_user_certificates": true,
  "allowed_users": "*",
  "valid_principals": "vagrant",
  "default_extensions": [
    {
      "permit-pty": ""
    }
  ],
  "key_type": "ca",
  "default_user": "vagrant",
  "ttl": "30m0s"
}
EOH
Success! Data written to: ssh-client-signer/roles/my-role

role 정보 확인

vault read ssh-client-signer/roles/my-role
Key                            Value
---                            -----
algorithm_signer               default
allow_bare_domains             false
allow_host_certificates        false
allow_subdomains               false
allow_user_certificates        true
allow_user_key_ids             false
allowed_critical_options       n/a
allowed_domains                n/a
allowed_domains_template       false
allowed_extensions             n/a
allowed_user_key_lengths       map[]
allowed_users                  *
allowed_users_template         false
default_critical_options       map[]
default_extensions             map[permit-pty:]
default_extensions_template    false
default_user                   vagrant
default_user_template          false
key_id_format                  n/a
key_type                       ca
max_ttl                        0s
not_before_duration            30s
ttl                            30m
728x90

8. SSH 서버 설정 (CA 키 설정)

Vault에서 생성한 CA 키를 SSH 서버에서 신뢰하도록 설정합니다.



ssh(sshd) server 작업

trusted-user-ca-keys.pem(/etc/ssh/trusted-user-ca-keys.pem) 저장

curl -s http://192.168.10.111:8200/v1/ssh-client-signer/public_key -o /etc/ssh/trusted-user-ca-keys.pem
cat /etc/ssh/trusted-user-ca-keys.pem

ssh(sshd) 설정(/etc/ssh/sshd_config)

echo 'TrustedUserCAKeys /etc/ssh/trusted-user-ca-keys.pem' >> /etc/ssh/sshd_config
echo "PubkeyAcceptedKeyTypes=+ssh-rsa,ssh-rsa-cert-v01@openssh.com" >> /etc/ssh/sshd_config

ssh(sshd) 설정 확인

cat /etc/ssh/sshd_config | egrep 'TrustedUserCAKeys|PubkeyAcceptedKeyTypes'

ssh(sshd) 재기동

sshd -t
systemctl restart sshd

9. 클라이언트 측 SSH 키 생성 및 서명

클라이언트에서 SSH 키를 생성하고 Vault에서 서명된 인증서를 생성하여 SSH 접속에 사용합니다.



SSH 키 생성

ssh-keygen -t rsa -C "vagrant@vault" -f ~/.ssh/id_rsa



echo 'export VAULT_ADDR=http://192.168.0.51:8200' >> ~/.bashrc
echo 'export VAULT_TOKEN="hvs.fZozwuLaIBEsH7SNsmtsR9w1"' >> ~/.bashrc
source ~/.bashrc
env | grep VAULT

Vault에서 SSH 키 서명 요청

vault write -field=signed_key ssh-client-signer/sign/my-role public_key=@$HOME/.ssh/id_rsa.pub > ~/.ssh/signed-cert.pub

서명된 인증서 확인

ssh-keygen -Lf ~/.ssh/signed-cert.pub

10. SSH 서버로 접속

서명된 인증서를 사용하여 SSH 서버에 접속합니다.

ssh -i ~/.ssh/signed-cert.pub -i ~/.ssh/id_rsa vagrant@192.168.10.112



참고URL

- HashiCorp Vault를 이용한 SSH 공개키 인증 : https://ikcoo.tistory.com/251

- Signed SSH Certificates : https://developer.hashicorp.com/vault/docs/secrets/ssh/signed-ssh-certificates

- client key signing : https://developer.hashicorp.com/vault/docs/secrets/ssh/signed-ssh-certificates#client-key-signing

- host key signing : https://developer.hashicorp.com/vault/docs/secrets/ssh/signed-ssh-certificates#host-key-signing

- 複雑なポリシーを適切に管理する、HashiCorp Vault SSH CA動的シークレットエンジンとSentinel : https://www.lac.co.jp/lacwatch/service/20200811_002237.html

- Managing Developer Access with Vault SSH : https://pacewisdom.com/blog/managing-developer-access-with-vault-ssh/
