HP 서버 스토리지 정보 확인(raid)

  • Smart Storage Administrator (ssacli)
    • 패키지명 : ssacli-4.21-7.0.x86_64.rpm
  • Array Configuration Utility(acucli)
    • 패키지명 : hpssacli-2.40-13.0.x86_64.rpm

패키지 설치

yum install -y ssacli-4.21-7.0.x86_64.rpm

컨트롤러 명령어

컨트롤러 정보 확인 명령어

  • 컨트롤러의 정보 표시
hpssacli ctrl all show config
$ hpssacli ctrl all show config

Smart Array P410i in Slot 0 (Embedded)    (sn: 5001412324380123E5)

   Port Name: 1I

   Port Name: 2I

   Internal Drive Cage at Port 1I, Box 1, OK
   array A (SAS, Unused Space: 0  MB)


      logicaldrive 1 (136.7 GB, RAID 1, OK)

      physicaldrive 1I:1:1 (port 1I:box 1:bay 1, SAS, 146 GB, OK)
      physicaldrive 1I:1:2 (port 1I:box 1:bay 2, SAS, 146 GB, OK)
  • 컨트롤러의 세부 정보 표시
hpssacli ctrl all show config detail
  • 컨트롤러의 상태 표시
hpssacli ctrl all show status
$ hpssacli ctrl all show status

Smart Array P410i in Slot 0 (Embedded)
   Controller Status: OK

물리적 드라이브 명령어

  • 디스크 정보 확인
hpssacli ctrl slot=0 pd all show
$ hpssacli ctrl slot=0 pd all show

Smart Array P410i in Slot 0 (Embedded)

   array A

      physicaldrive 1I:1:1 (port 1I:box 1:bay 1, SAS, 146 GB, OK)
      physicaldrive 1I:1:2 (port 1I:box 1:bay 2, SAS, 146 GB, OK)
  • 디스크(1I:1:1) 상세 정보 확인
hpssacli ctrl slot=0 pd 1I:1:1 show detail
$ hpssacli ctrl slot=0 pd 1I:1:1 show detail

Smart Array P410i in Slot 0 (Embedded)

   array A

      physicaldrive 1I:1:1
         Port: 1I
         Box: 1
         Bay: 1
         Status: OK
         Drive Type: Data Drive
         Interface Type: SAS
         Size: 146 GB
         Drive exposed to OS: False
         Native Block Size: 512
         Rotational Speed: 15000
         Firmware Revision: HPD3
         Serial Number: 6XM2GHQV0000B3409CS4
         Model: HP      EH0146FBQDC
         Current Temperature (C): 40
         Maximum Temperature (C): 45
         PHY Count: 2
         PHY Transfer Rate: 6.0Gbps, Unknown
         Sanitize Erase Supported: False
  • 디스크 상태 확인
hpssacli ctrl slot=0 pd all show status
$ hpssacli ctrl slot=0 pd all show status

   physicaldrive 1I:1:1 (port 1I:box 1:bay 1, 146 GB): OK
   physicaldrive 1I:1:2 (port 1I:box 1:bay 2, 146 GB): OK
728x90

논리적 드라이브 명령어

  • 레이드 정보 확인
hpssacli ctrl slot=0 ld all show
hpssacli ctrl slot=0 ld 1 show
$ hpssacli ctrl slot=0 ld 1 show

Smart Array P410i in Slot 0 (Embedded)

   array A

      logicaldrive 1 (136.7 GB, RAID 1, OK)
  • 레이드 상태 확인
hpssacli ctrl slot=0 ld all show status
hpssacli ctrl slot=0 ld 1 show status
$ hpssacli ctrl slot=0 ld 1 show status

  logicaldrive 1 (136.7 GB, 1): OK

ssacli 사용법

$ ssacli help

CLI Syntax
   A typical SSACLI command line consists of three parts: a target device,
   a command, and a parameter with values if necessary. Using angle brackets to
   denote a required variable and plain brackets to denote an optional
   variable, the structure of a typical SSACLI command line is as follows:

      <target> <command> [parameter=value]

   <target> is of format:
      [controller all|slot=#|serialnumber=#]
      [array all|<id>]
      [physicaldrive all|allunassigned|[#:]#:#|[#:]#:#-[#:]#:#]
      [ssdphysicaldrive all|allunassigned|[#:]#:#|[#:]#:#-[#:]#:#]
      [logicaldrive all|#]
      [enclosure all|#:#|serialnumber=#]
      [licensekey all|<key>]
      [ssdinfo]
      [tapedrive all]
      Note 1: The #:#:# syntax is only needed for systems that
              specify port:box:bay. Other physical drive targeting
              schemes are box:bay and port:id.

   Example targets:
   ("CN0" is a sample port name that may be different depending on the
   controller)
      controller slot=5
      controller serialnumber=P21DA2322S
      controller slot=7 array A
      controller slot=5 logicaldrive 5
      controller slot=5 physicaldrive 1:5
      controller slot=5 physicaldrive CN0:2:3
      controller slot=5 ssdphysicaldrive all
      controller slot=5 tapedrive all
      controller slot=5 enclosure CN0:1 show
      controller slot=5 licensekey XXXXX-XXXXX-XXXXX-XXXXX-XXXXX

For detailed command information type any of the following:
   help add
   help create
   help delete
   help diag
   help flash
   help heal
   help modify
   help remove
   help shorthand
   help show
   help target
   help rescan
   help version

Encryption related commands:
   help ctrlpasswdstate
   help clearencryptionconfig
   help encode
   help encrypt
   help enableencryption
   help encryption
   help eula
   help fwlock
   help import
   help instantsecureerase
   help localkeymanagermode
   help login
   help logout
   help recoverpassword
   help rekey
   help remotekey
   help removectrlpasswd
   help rescankeys
   help setmasterkeycache
   help setctrlpasswd
   help setpasswd
   help setrecoveryparams
   help unlockvolumes

Help also accepts commonly used CLI parameters and SSA keywords. Adding
additional keywords will further filter the help output. Examples:
   help migrate
   help expand
   help extend
   help <keyword> <keyword> ... <keyword>

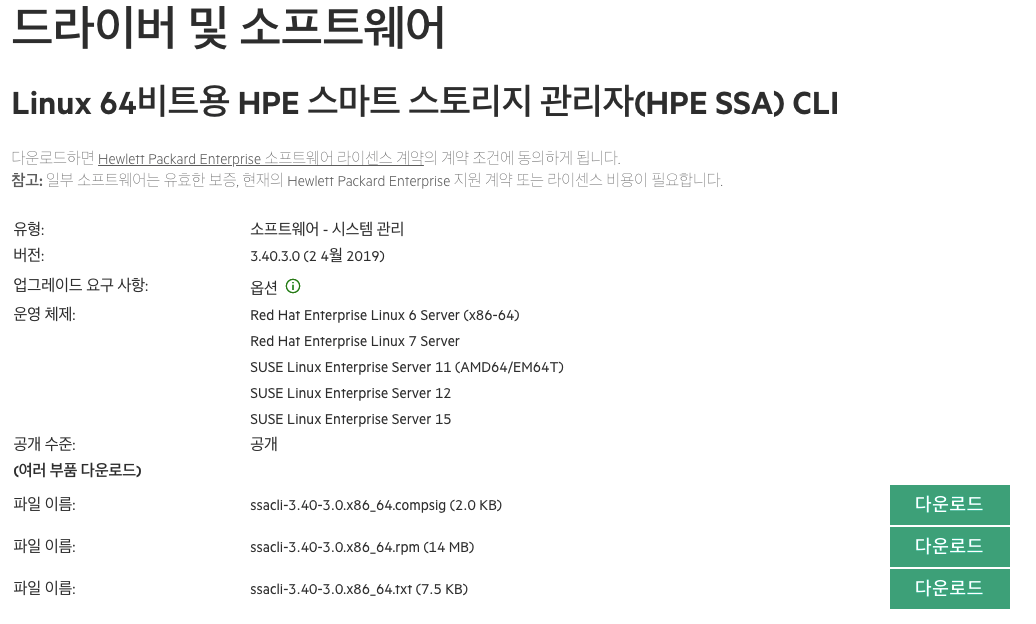

support.hpe.com > 드라이버 및 소프트웨어 > Linux 64비트용 HPE 스마트 스토리지 관리자(HPE SSA) CLI

r1



참고URL

- HP Smart Array CLI commands : https://scbyun.com/565
