[리눅스] Fleet Server 호스트 추가

반응형

Fleet Server 호스트 추가

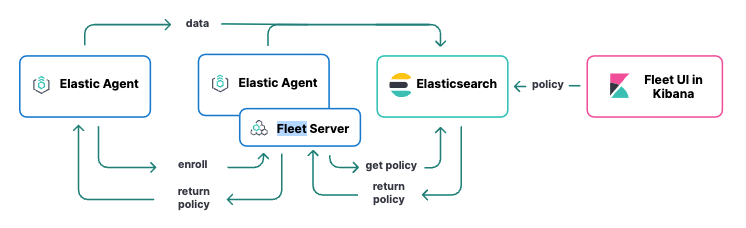

다이어그램(diagram)

출처-https://www.elastic.co/guide/en/fleet/8.6/fleet-server.html

Elasticsearch에서 보안 및 API 키 인증 기능을 활성화

elasticsearch 구성 파일 편집

  • xpack.security.authc.api_key.enabled: true 추가
vim /etc/elasticsearch/elasticsearch.yml
...
# Enable security features
xpack.security.enabled: true

xpack.security.enrollment.enabled: true

xpack.security.authc.api_key.enabled: true

# Enable encryption for HTTP API client connections, such as Kibana, Logstash, and Agents
xpack.security.http.ssl:
  enabled: true
  keystore.path: certs/http.p12

# Enable encryption and mutual authentication between cluster nodes
xpack.security.transport.ssl:
  enabled: true
  verification_mode: certificate
  keystore.path: certs/transport.p12
  truststore.path: certs/transport.p12
...
systemctl restart elasticsearch.service

Kibana에서 보안 기능을 활성화하고 암호화 키를 설정

Kibana Encryption Key 생성

/usr/share/kibana/bin/kibana-encryption-keys generate
$ /usr/share/kibana/bin/kibana-encryption-keys generate
## Kibana Encryption Key Generation Utility

The 'generate' command guides you through the process of setting encryption keys for:

xpack.encryptedSavedObjects.encryptionKey
    Used to encrypt stored objects such as dashboards and visualizations
    https://www.elastic.co/guide/en/kibana/current/xpack-security-secure-saved-objects.html#xpack-security-secure-saved-objects

xpack.reporting.encryptionKey
    Used to encrypt saved reports
    https://www.elastic.co/guide/en/kibana/current/reporting-settings-kb.html#general-reporting-settings

xpack.security.encryptionKey
    Used to encrypt session information
    https://www.elastic.co/guide/en/kibana/current/security-settings-kb.html#security-session-and-cookie-settings


Already defined settings are ignored and can be regenerated using the --force flag.  Check the documentation links for instructions on how to rotate encryption keys.
Definitions should be set in the kibana.yml used configure Kibana.

Settings:
xpack.encryptedSavedObjects.encryptionKey: f36c177625d38aa6b144b3d4f5c29059
xpack.reporting.encryptionKey: 4445ce40b2fbfb52befe75831f67d75c
xpack.security.encryptionKey: e5443ff52618ac2fba80c18b1e7f6f9f

kibana 구성 파일 편집

  • xpack.fleet.agents.tlsCheckDisabled: true
  • xpack.encryptedSavedObjects.encryptionKey: f36c177625d38aa6b144b3d4f5c29059
  • xpack.reporting.encryptionKey: 4445ce40b2fbfb52befe75831f67d75c
  • xpack.security.encryptionKey: e5443ff52618ac2fba80c18b1e7f6f9f
vim /etc/kibana/kibana.yml
...
xpack.fleet.agents.tlsCheckDisabled: true

xpack.encryptedSavedObjects.encryptionKey: f36c177625d38aa6b144b3d4f5c29059
xpack.reporting.encryptionKey: 4445ce40b2fbfb52befe75831f67d75c
xpack.security.encryptionKey: e5443ff52618ac2fba80c18b1e7f6f9f
...
systemctl restart kibana.service

보안 certificates 및 keys ↓↓↓↓↓

더보기

보안 certificates 및 keys

  • http_ca.crt : 이 Elasticsearch 클러스터의 HTTP 계층에 대한 인증서를 서명하는 데 사용되는 CA 인증서입니다.
  • http.p12 : 이 노드의 HTTP 계층에 대한 키와 인증서가 들어 있는 키 저장소입니다.
  • transport.p12 : 클러스터의 모든 노드에 대한 전송 계층의 키와 인증서가 들어 있는 키 저장소입니다.

http.p12 비밀번호 확인

/usr/share/elasticsearch/bin/elasticsearch-keystore show xpack.security.http.ssl.keystore.secure_password
$ /usr/share/elasticsearch/bin/elasticsearch-keystore show xpack.security.http.ssl.keystore.secure_password
buzsdW_wR2KpqgoI4I3-PQ

transport.p12 비밀번호 확인

/usr/share/elasticsearch/bin/elasticsearch-keystore show xpack.security.transport.ssl.keystore.secure_password
$ /usr/share/elasticsearch/bin/elasticsearch-keystore show xpack.security.transport.ssl.keystore.secure_password
Y2BTQ4HRTOiqgrlcO1gxyA



Fleet 서버에 대한 사용자 지정 인증서(certificate) 및 개인 키(private key)를 생성 ↓↓↓↓↓

더보기

Fleet 서버에 대한 사용자 지정 인증서(certificate) 및 개인 키(private key)를 생성

  • 인증 기관(CA)을 생성
/usr/share/elasticsearch/bin/elasticsearch-certutil ca --pem
$ /usr/share/elasticsearch/bin/elasticsearch-certutil ca --pem
This tool assists you in the generation of X.509 certificates and certificate
signing requests for use with SSL/TLS in the Elastic stack.

The 'ca' mode generates a new 'certificate authority'
This will create a new X.509 certificate and private key that can be used
to sign certificate when running in 'cert' mode.

Use the 'ca-dn' option if you wish to configure the 'distinguished name'
of the certificate authority

By default the 'ca' mode produces a single PKCS#12 output file which holds:
    * The CA certificate
    * The CA's private key

If you elect to generate PEM format certificates (the -pem option), then the output will
be a zip file containing individual files for the CA certificate and private key

Please enter the desired output file [elastic-stack-ca.zip]:
$ ls -l /usr/share/elasticsearch/elastic-stack-ca.zip
-rw------- 1 root root 2516 Mar 17 08:46 /usr/share/elasticsearch/elastic-stack-ca.zip
cd /usr/share/elasticsearch
unzip elastic-stack-ca.zip
$ ls -l ca/
total 8
-rw-r--r-- 1 root root 1200 Mar 17 08:46 ca.crt
-rw-r--r-- 1 root root 1675 Mar 17 08:46 ca.key



  • 인증 기관(certificate authority)을 사용하여 Fleet Server용 인증서(certificates) 생성
/usr/share/elasticsearch/bin/elasticsearch-certutil cert \
--name fleet-server \
--ca-cert /usr/share/elasticsearch/ca/ca.crt \
--ca-key /usr/share/elasticsearch/ca/ca.key \
--dns fserver.scbyun.com \
--ip 10.10.10.11 \
--pem
$ /usr/share/elasticsearch/bin/elasticsearch-certutil cert \
> --name fleet-server \
> --ca-cert /usr/share/elasticsearch/ca/ca.crt \
> --ca-key /usr/share/elasticsearch/ca/ca.key \
> --dns fserver.scbyun.com \
> --ip 10.10.10.11 \
> --pem
This tool assists you in the generation of X.509 certificates and certificate
signing requests for use with SSL/TLS in the Elastic stack.

The 'cert' mode generates X.509 certificate and private keys.
    * By default, this generates a single certificate and key for use
       on a single instance.
    * The '-multiple' option will prompt you to enter details for multiple
       instances and will generate a certificate and key for each one
    * The '-in' option allows for the certificate generation to be automated by describing
       the details of each instance in a YAML file

    * An instance is any piece of the Elastic Stack that requires an SSL certificate.
      Depending on your configuration, Elasticsearch, Logstash, Kibana, and Beats
      may all require a certificate and private key.
    * The minimum required value for each instance is a name. This can simply be the
      hostname, which will be used as the Common Name of the certificate. A full
      distinguished name may also be used.
    * A filename value may be required for each instance. This is necessary when the
      name would result in an invalid file or directory name. The name provided here
      is used as the directory name (within the zip) and the prefix for the key and
      certificate files. The filename is required if you are prompted and the name
      is not displayed in the prompt.
    * IP addresses and DNS names are optional. Multiple values can be specified as a
      comma separated string. If no IP addresses or DNS names are provided, you may
      disable hostname verification in your SSL configuration.


    * All certificates generated by this tool will be signed by a certificate authority (CA)
      unless the --self-signed command line option is specified.
      The tool can automatically generate a new CA for you, or you can provide your own with
      the --ca or --ca-cert command line options.


By default the 'cert' mode produces a single PKCS#12 output file which holds:
    * The instance certificate
    * The private key for the instance certificate
    * The CA certificate

If you specify any of the following options:
    * -pem (PEM formatted output)
    * -multiple (generate multiple certificates)
    * -in (generate certificates from an input file)
then the output will be be a zip file containing individual certificate/key files

Please enter the desired output file [certificate-bundle.zip]:

Certificates written to /usr/share/elasticsearch/certificate-bundle.zip

This file should be properly secured as it contains the private key for
your instance.
After unzipping the file, there will be a directory for each instance.
Each instance has a certificate and private key.
For each Elastic product that you wish to configure, you should copy
the certificate, key, and CA certificate to the relevant configuration directory
and then follow the SSL configuration instructions in the product guide.

For client applications, you may only need to copy the CA certificate and
configure the client to trust this certificate.
$ ls -l /usr/share/elasticsearch/certificate-bundle.zip
-rw------- 1 root root 2651 Mar 17 08:49 /usr/share/elasticsearch/certificate-bundle.zip
unzip certificate-bundle.zip
$ ls -l fleet-server/
total 8
-rw-r--r-- 1 root root 1216 Mar 17 08:49 fleet-server.crt
-rw-r--r-- 1 root root 1675 Mar 17 08:49 fleet-server.key



Fleet 초기 설정(fleet-server)

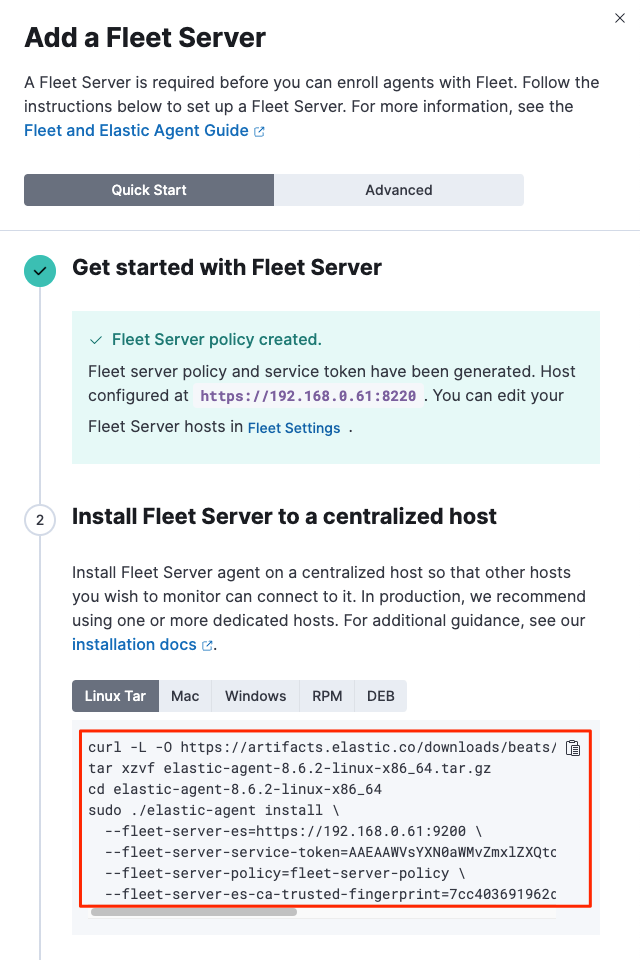

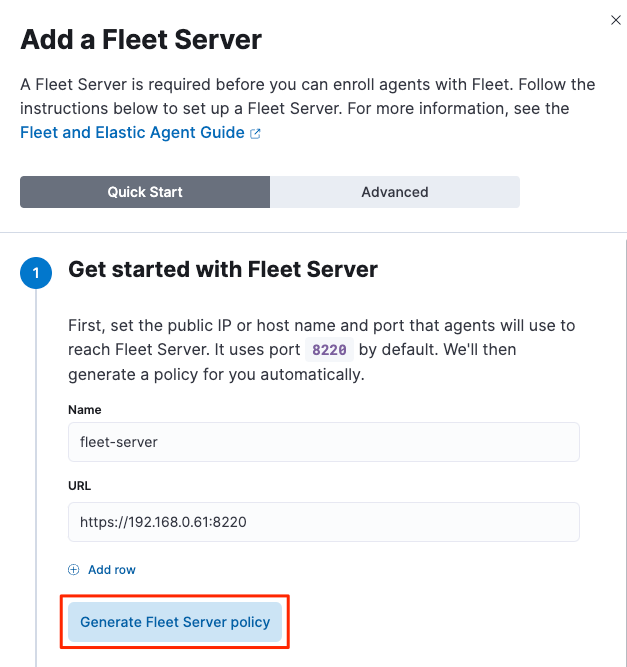

Management > Fleet > Add Fleet Server





fleet-server

curl -sL -O https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-8.6.2-linux-x86_64.tar.gz
tar xzf elastic-agent-8.6.2-linux-x86_64.tar.gz
cd elastic-agent-8.6.2-linux-x86_64
sudo ./elastic-agent install \
--fleet-server-es=https://192.168.0.61:9200 \
--fleet-server-service-token=AAEAAWVsYXN0aWMvZmxlZXQtc2VydmVyL3Rva2VuLTE2NzkwNjQwNDIyNTY6VXo3ZmN0T1JScWVSbW9STkNsX2F4dw \
--fleet-server-policy=fleet-server-policy \
--fleet-server-es-ca-trusted-fingerprint=7cc403691962d363a2ed7e2da63835fb9d9abec4fd7e25fa88f7824e454e4aca
$ sudo ./elastic-agent install \
--fleet-server-es=https://192.168.0.61:9200 \
--fleet-server-service-token=AAEAAWVsYXN0aWMvZmxlZXQtc2VydmVyL3Rva2VuLTE2NzkwNjQwNDIyNTY6VXo3ZmN0T1JScWVSbW9STkNsX2F4dw \
--fleet-server-policy=fleet-server-policy \
--fleet-server-es-ca-trusted-fingerprint=7cc403691962d363a2ed7e2da63835fb9d9abec4fd7e25fa88f7824e454e4aca
Elastic Agent will be installed at /opt/Elastic/Agent and will run as a service. Do you want to continue? [Y/n]:Y
{"log.level":"info","@timestamp":"2023-03-17T23:44:50.023+0900","log.origin":{"file.name":"cmd/enroll_cmd.go","file.line":407},"message":"Generating self-signed certificate for Fleet Server","ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-03-17T23:44:52.827+0900","log.origin":{"file.name":"cmd/enroll_cmd.go","file.line":803},"message":"Fleet Server - Starting","ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-03-17T23:44:56.833+0900","log.origin":{"file.name":"cmd/enroll_cmd.go","file.line":784},"message":"Fleet Server - Running on policy with Fleet Server integration: fleet-server-policy; missing config fleet.agent.id (expected during bootstrap process)","ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-03-17T23:44:57.663+0900","log.origin":{"file.name":"cmd/enroll_cmd.go","file.line":475},"message":"Starting enrollment to URL: https://node1:8220/","ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-03-17T23:44:59.217+0900","log.origin":{"file.name":"cmd/enroll_cmd.go","file.line":273},"message":"Successfully triggered restart on running Elastic Agent.","ecs.version":"1.6.0"}
Successfully enrolled the Elastic Agent.
Elastic Agent has been successfully installed.

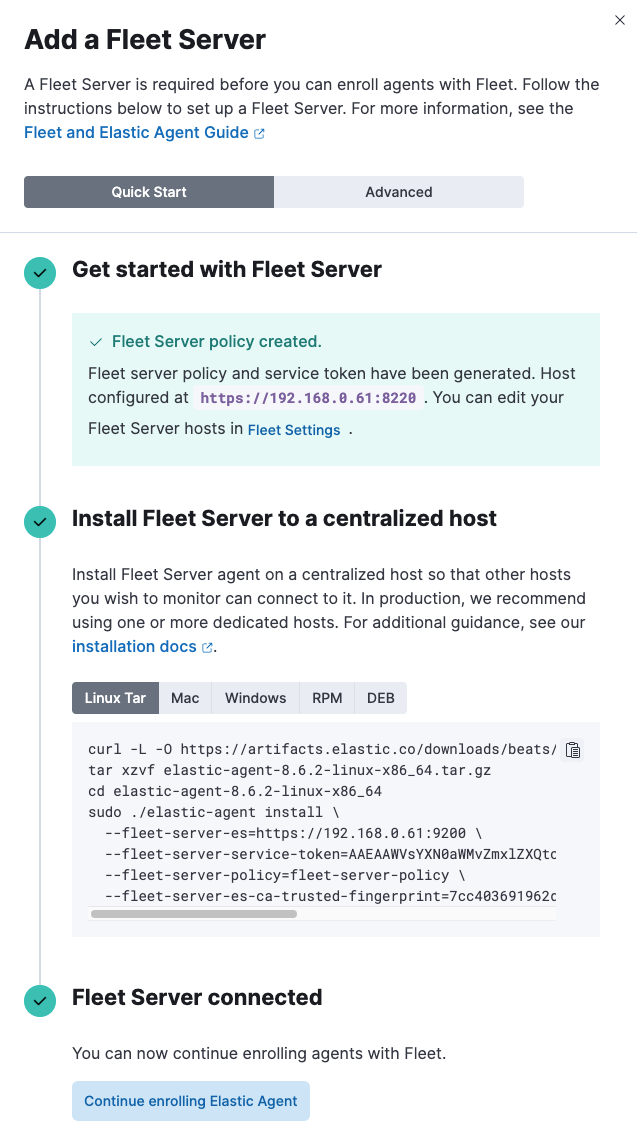

Management > Fleet



elastic-agent

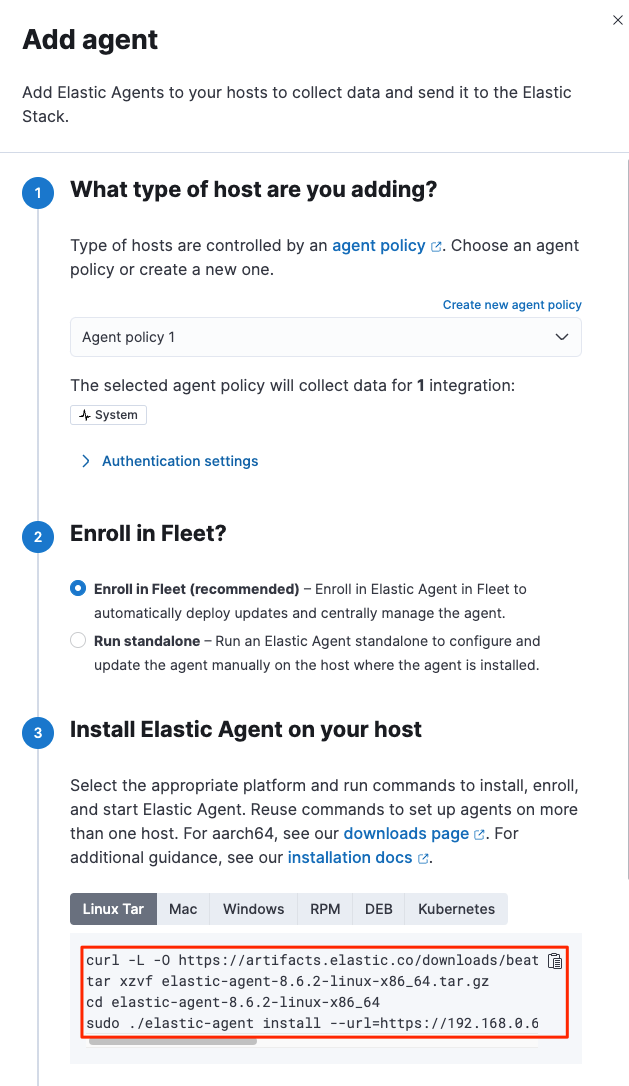

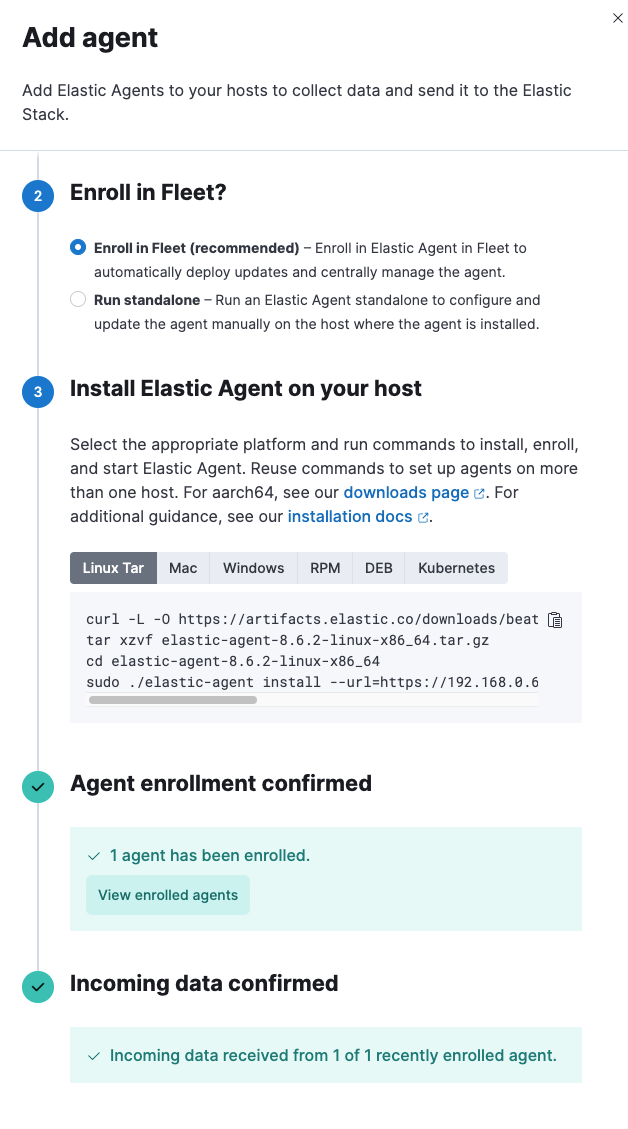

Management > Fleet > Add agent



elastic-agent ↓↓↓↓↓

더보기
curl -sL -O https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-8.6.2-linux-x86_64.tar.gz
tar xzf elastic-agent-8.6.2-linux-x86_64.tar.gz
cd elastic-agent-8.6.2-linux-x86_64
sudo ./elastic-agent install --url=https://192.168.0.61:8220 --enrollment-token=Umk0WThJWUJpTXItaXBna05nOUo6RnBQSlY5Z1VUa2U5QnNZLVRmUkhSUQ==



elastic-agent docker-compose file

vim docker-compose.yaml
version: '3.9'
services:

  elastic-agent:
    image: docker.elastic.co/beats/elastic-agent:8.6.2
    container_name: elastic-agent
    restart: always
    user: root
    ulimits:
      nofile:
        soft: 65536
        hard: 65536
    environment:
      - FLEET_ENROLL=1
      - FLEET_URL=https://192.168.0.61:8220
      - FLEET_ENROLLMENT_TOKEN=Umk0WThJWUJpTXItaXBna05nOUo6RnBQSlY5Z1VUa2U5QnNZLVRmUkhSUQ==
      - FLEET_INSECURE=true
    volumes:
      - /usr/share/zoneinfo/Asia/Seoul:/etc/localtime:ro
    command: agent
    networks:
      - default
    logging:
      driver: "json-file"
      options:
        max-size: "100m"
        max-file: "10"
docker-compose up -d

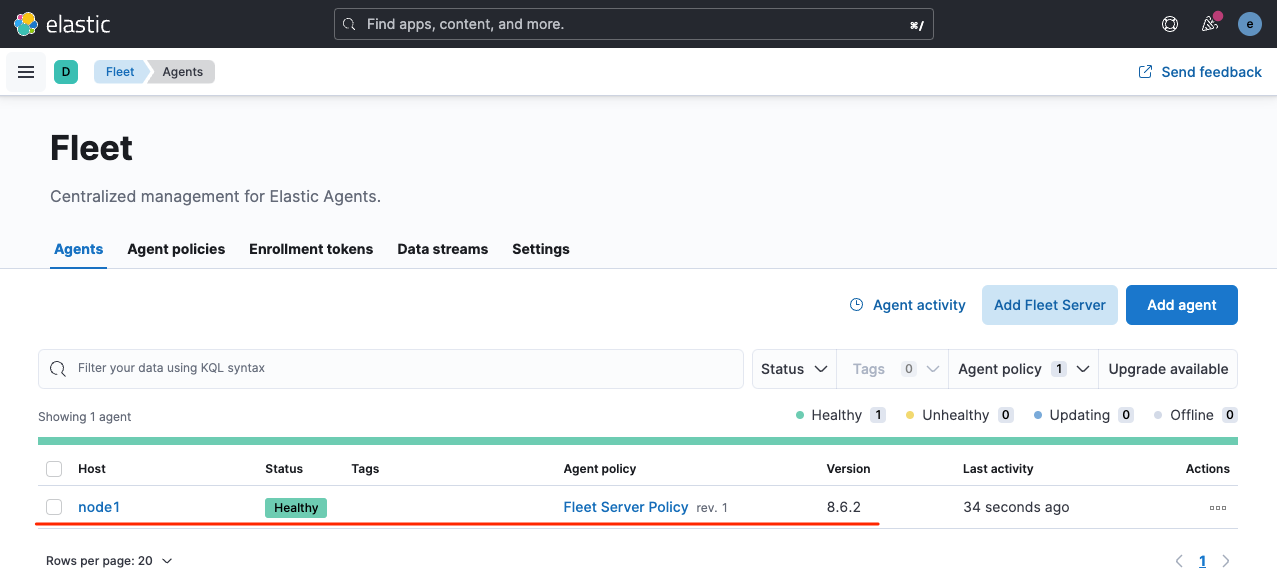

Management > Fleet



참고URL

- Deploy on-premises and self-managed : https://www.elastic.co/guide/en/fleet/8.6/add-fleet-server-on-prem.html#add-fleet-server-on-prem-compatibility
